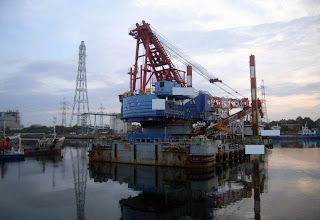

PILE DRIVING BARGE FOR SALE
LEADING-EDG 250T (MAX LENGTH OF PILE: 75M )


Ship sales,Sales ship,Ship information,about ship,buy ship,ship buy,local ship,used ship,latest ship,ships buy,

BUILT JUNE 2004 IN JAPAN

RIG BODY:
RIG BODY DIMENSION: LBD: 55.00 X 22.00 X 3.80M
CREW: 12
WASTE WATER: 2165T
OPERATING WINCHES: ELECTRICALLY OPERATED HYDRAULIC
BOW: 12T/61X12/24M/MIN DOUBLE X 2
12T/61X12/24M/MIN SINGLE X 2
STEM: 12T/61X12/24M/MIN SINGLE X 4
ALL PURPOSE: 2T/1.5X15/30M/MIN SINGLE X 2
SPUD LIFT DEVICES: 1200MM X 28M 60T/30T FIXED TYPE X 3
1200MM X 20M 60T/30T FIXED TYPE X 1

MAIN GENERATOR: 220 KVA (363 KW/1800RPM ANTINOISE PARALLEL SPECIFICATIONS) X2
BACK UP GENERATORS: 90KVA(72KW/1800RPM ANTI-NOISE, PORTABLE) X 1
47KVA(36KW/1800RPM ANTI-NOICE, PORTABLE) X 1
CRANE APPARATUS:
TYPE: SKK-2800DT-L
RATED LOAD: TOTAL REVOLVING TYPE 250T
FIRST AUXILIARY 120T SECOND AUXILIARY 50T
MOTOR: MITSUBISHI HEAVY INDUSTRIES CO.LTD
S6A3 –MPTA478KW/1900RPM


MAX JIB LENGTH: 49M (20.5M+4.5M+6M+9M+9M)
AUXILIARY HOISTING 60M ABOVE WATER
MAIN WINDING DRUM: STRAIGHT WIND 24T X 57M/MIN X 1
FIRST AUXILIARY WINDING DRUM: STRAIGHT WIND 15T X 80M/MIN X 2
SECOND AUXILIARY WINDING DRUM: STRAIGHT WIND 15T X 80M/MIN X 1
MISCELLANEOUS USE DRUMS: STRAIGHT WIND 15T 7.5T 3T 8
TAGGAR WINCHES: 1.2T X 2
WINDING UP SPEED: 0-4.5M/MIN (250T)
WINDING DOWN SPEED: 0-5.7M/MIN (250T)
RAISING SPEED: 0-6.6M/MIN
ROTATING DEVICE: 0-1.7 RPM
METHOD OF OPERATING: AIR PRESSURE MANUAL TYPE


PILE DRIVER:
MAX LENGTH OF PILE: 60M
HYDRAULIC GRASPING FORK: THREE SECTIONS, EXTEND-RETRACT, HYDRAULIC
(MINI LENGTH: 10.17M, MAX LENGTH: 20.23M)
HYDRAULIC HAMMER: CAN FIX (IHC S200, IHC S280)
NOW FIXED WITH NH115B, NH150B
MAXIMUM HAMMER DIA: 1700MM (MAX WEIGHT: 40T)
